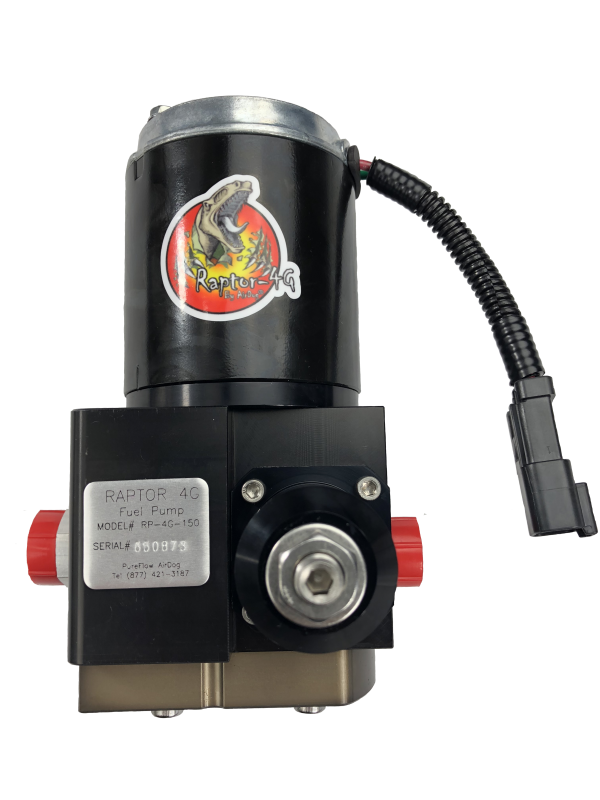

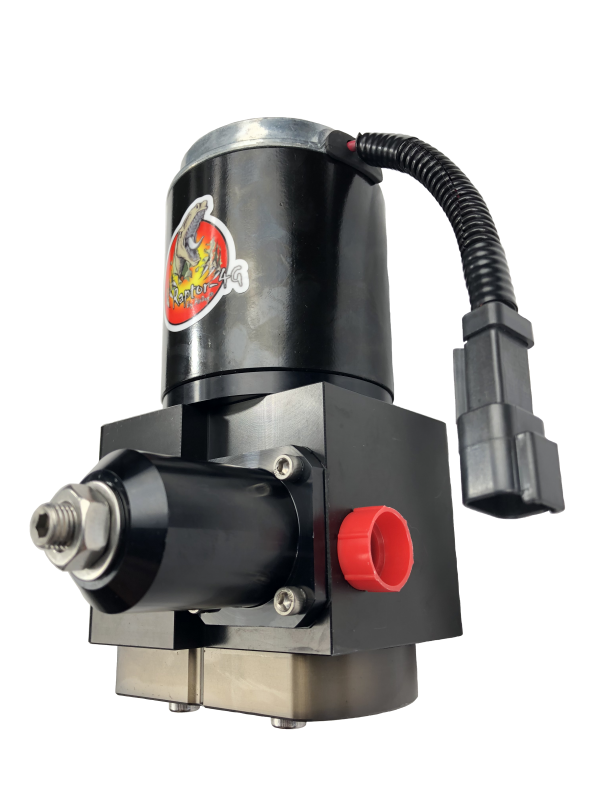

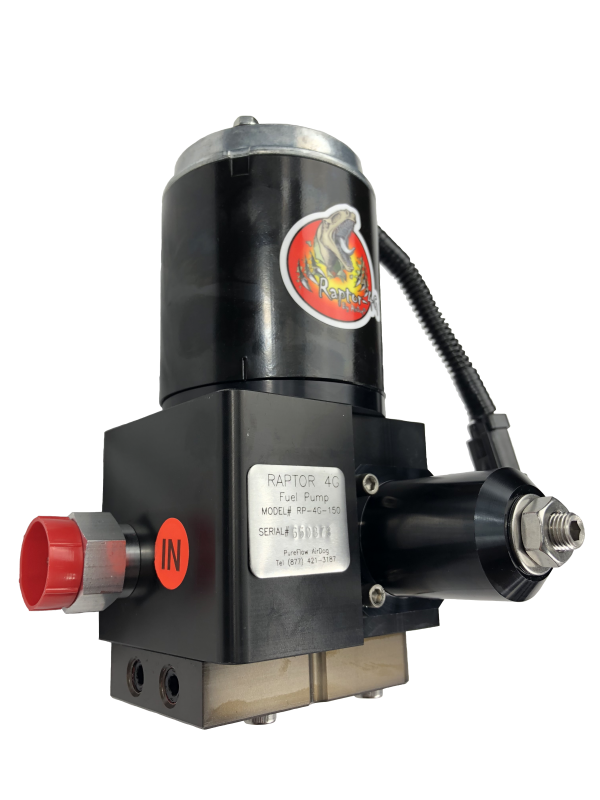

This is the Raptor-4G RP-100 fuel system for the 2003-2004.5 Common Rail Cummins with the fuel pump mounted in the fuel tank. This system mounts to the frame rail using the supplied sandwich plate mounting system.

A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2 Inch bulkhead fitting. This will bypass the factory in-tank lift pump.

The pressure side connects directly into the side of the fuel filter housing on the engine block. These pumps are internally regulated and do not require a return line.

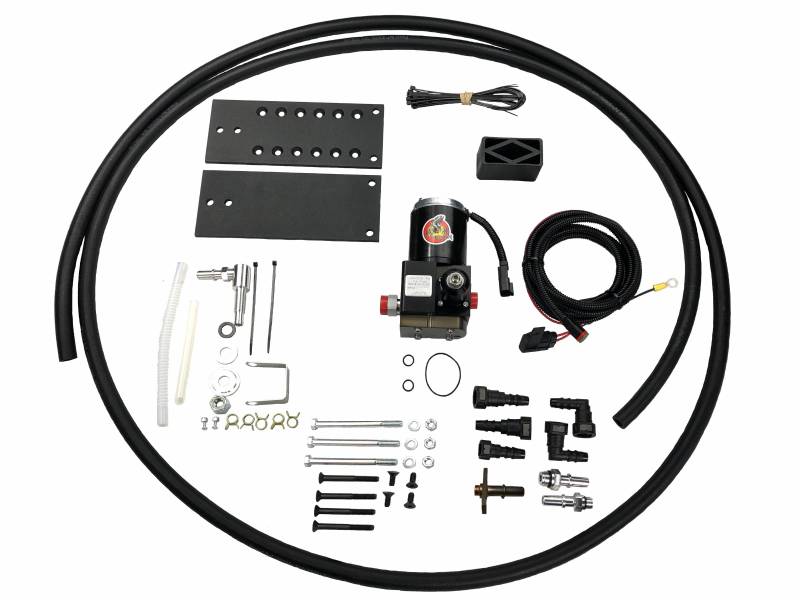

This is a 100GPH (Gallon Per Hour) fuel system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.

Details:

• Gallons per hour: 100GPH
• Manufacturer: Cummins
• Make: Dodge
• Liter: 5.9L
• Valve: 24V
• Engine Years: 1998.5-2004
• Fuel Type: Diesel
