The PowerFlo lift pump is the latest drop-in lift pump from the diesel experts at Fleece Performance! Needing to replace your factory pump or looking to upgrade? Our plug-and-play kit requires NO cutting, splicing, or modification of the factory fuel lines or fuel tank.

The PowerFlo must be used in combination with our under bed filter kit (FPE-FMC-UBFA-1724) and can not be used with the factory under bed filter assembly. Finish off your setup with our under hood filter base (FPE-FMC-UHFA-1123) for the ultimate fuel delivery setup on your 6.7 Powerstroke!

Features
Direct In-Tank Replacement: The PowerFlo lift pump for the 2017-2024 6.7L Power Stroke retains all of the factory fuel lines and installs in less than half the time of other frame mounted high flow lift pumps.
Ultra-Quiet - Dual Gerotor: Two is always better than one, and the PowerFlo delivers with two industry proven ultra-quiet gerotor pumps, providing increased flow capacity and the ability to support up to 800 HP!

Seamless Integration: The active fill bucket eliminates the need for tank sumps, draw straws, additional air filtration, and the 1/4 tank issues typically encountered when seeking a higher flow lift pump to meet your engine's need.

This kit requires no cutting, splicing, or modification of the existing fuel lines, harness, or fuel tank and retains all factory fuel control module capability.
Aftermarket Capable: Want the benefits of the in-tank pump but need to run your own fuel lines?

The pump outlet and return are threaded to accept a -8 O-ring fitting (3/4 Inch-16 thread). This product has been tested and validated for use with 2017-2024 trucks equipped with an S&S Diesel Motorsport DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit.

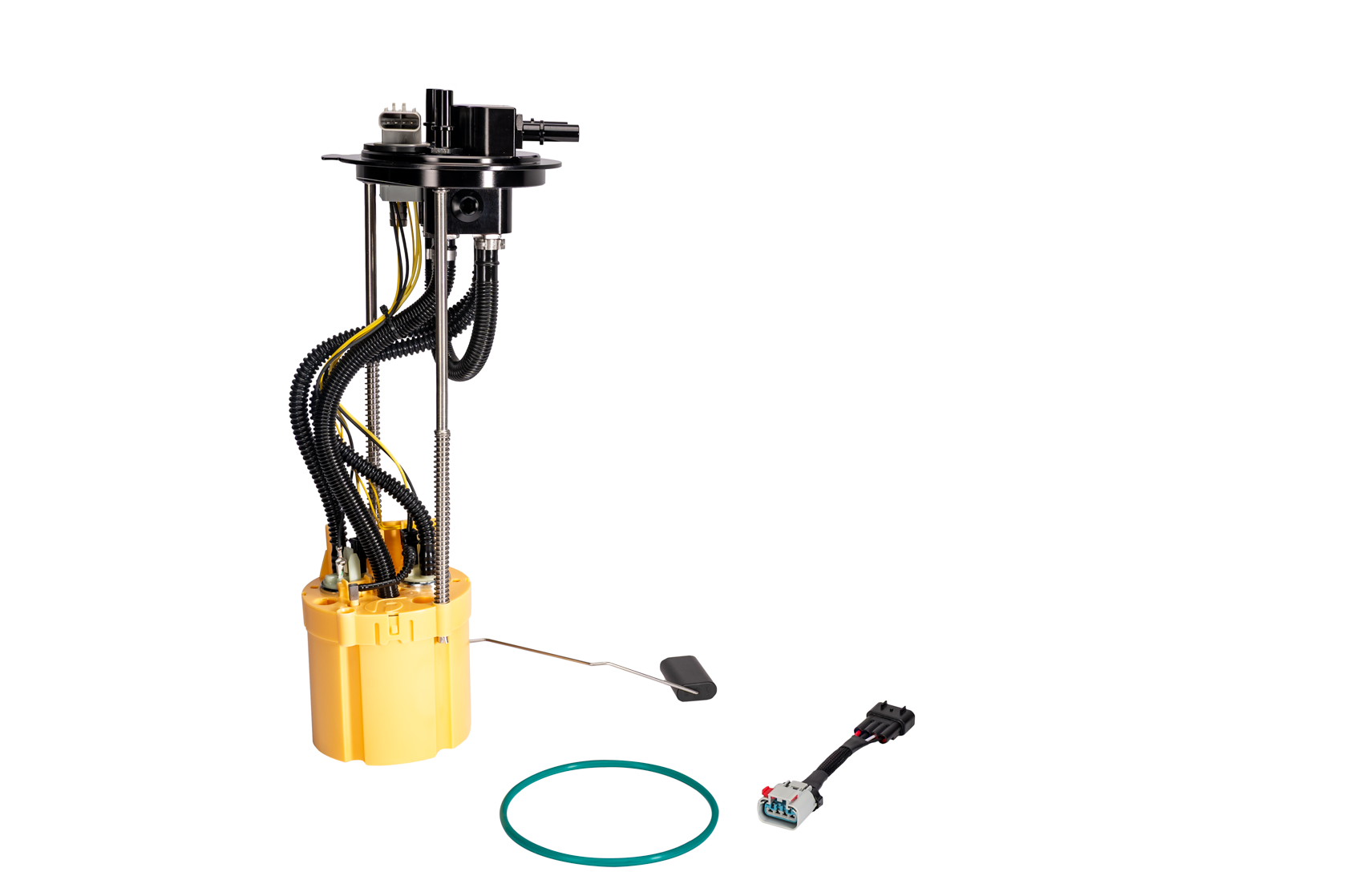

Kit includes:
PowerFlo Lift Pump with integral fuel level sender
Chassis wiring adapter harness
Fuel sending unit tank O-ring

Cross-Reference
 Year FPE Part Number Replaces FORD OE Part Number
 2017-2024 FPE-PF-FMC-1724-SB HC3Z-9H307AQ
 2017-2024 FPE-PF-FMC-1724-LB HC3Z-9H307AR

Application Notes

• The PowerFlo utilizes the stock fuel control module to modulate fuel delivery pressure as required based on engine load.
• This product MUST be used with the Fleece Performance under bed filter kit (FPE-FMC-UBFA-1724) and can not be used with the factory under bed filter assembly.
• This product has been tested and verified to work with trucks equipped with an S&S Diesel Motorsport DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit.
• This product has been confirmed to fit Titan and S&B aftermarket fuel tanks.
• PowerFlo lift pumps are validated for usage with up to 20 Percent biodiesel.

Applications:

• 2017-2024 Ford F-250/F-350/F-450 6.7L Power Stroke

Details:

• Fits: 2017-2024 Ford F-250/F-350/F-450
• Color: Black/Yellow
• Series: PowerFlo
• Warranty: Limited Lifetime Warranty
• Fuel Type: Diesel
• Liter: 6.7 Liter
• Engine Years: 2017-2024
• Engine Manufacturer: Powerstroke
